Foam fills Fairchild hangar
By Airman 1st Class Mackenzie Richardson, 92nd Air Refueling Wing Public Affairs
/ Published October 06, 2015
1 of 5
DOWNLOAD HI-RES
/
PHOTO DETAILS

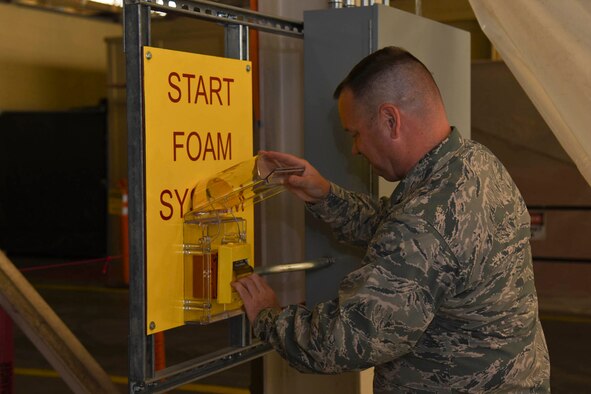

Col. Brian McDaniel, 92nd Air Refueling Wing commander, initiates the foam suppression system test in hangar one Oct. 1, 2015, at Fairchild Air Force Base, Wash. The foam suppression system is capable of producing 238,000 cubic feet of foam concentrate per minute. In the test, the system ran for approximately two-and-half-minutes, and produced over six feet of foam which covered the 68,000 square foot floor of hangar one.
2 of 5
DOWNLOAD HI-RES
/
PHOTO DETAILS

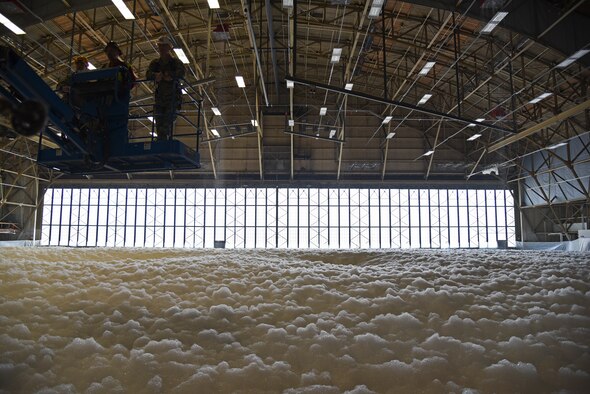

The 92nd Civil Engineer Squadron, maintainers, emergency responders and local contractors complete the foam suppression test in hangar one Oct. 1, 2015, at Fairchild Air Force Base, Wash. The test ran for approximately two-and-a-half minutes creating over six feet of foam which covered the entire hangar floor, which is 68,000 square feet. (U.S. Air Force photo/Airman 1st Class Mackenzie Richardson)
3 of 5
DOWNLOAD HI-RES
/
PHOTO DETAILS
The foam suppression system test conducted by the 92nd Civil Engineer Squadron in hangar one met the necessary requirements Oct. 1, 2015, at Fairchild Air Force Base, Wash. The Ansul High Expansion Concentrate used in the test is very similar to dish soap, resulting in an easy clean-up. The foam was allowed to settle over the weekend which resulted in puddles and very little foam solution. In compliance with environmental regulations, the remaining foam solution is collected and transported to an approved off-site disposal facility. (U.S. Air Force photo/Airman 1st Class Mackenzie Richardson)
4 of 5
DOWNLOAD HI-RES
/
PHOTO DETAILS

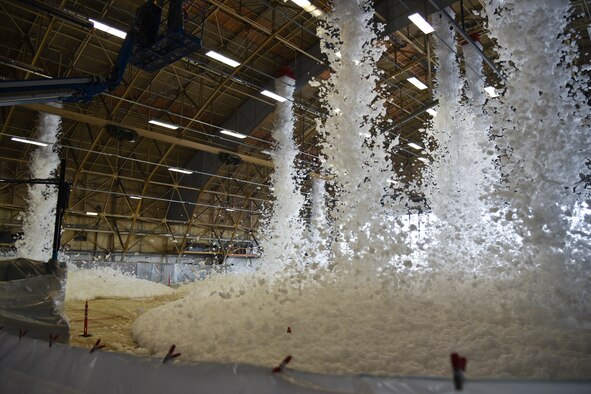

The 92nd Civil Engineer Squadron conducts a foam suppression system test in hangar one Oct. 1, 2015, at Fairchild Air Force Base, Wash. The foam is known as Ansul High Expansion Concentrate, when mixed with water the solution becomes 2 percent foam and 98 percent water. The system has a capacity to fill one entire hangar with approximately 20 feet of foam. (U.S. Air Force photo/Airman 1st Class Mackenzie Richardson)
5 of 5
DOWNLOAD HI-RES
/
PHOTO DETAILS

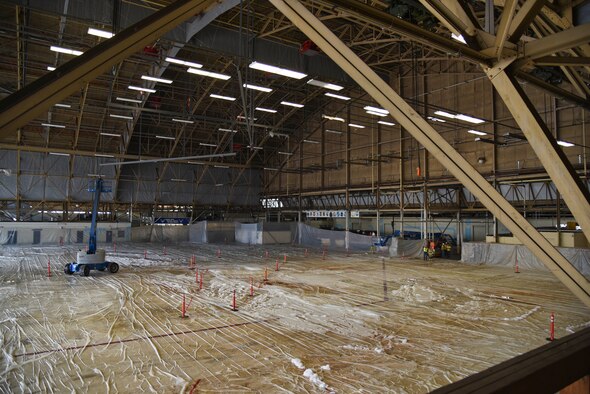

The 92nd Civil Engineer Squadron, maintainers, emergency responders and local contractors prepare for the foam suppression system test in hangar one Oct. 1, 2015, at Fairchild Air Force Base, Wash. The foam test was the last of a series of four, making sure the facilities, personnel and equipment are safe from potential hazards. (U.S. Air Force photo/Airman 1st Class Mackenzie Richardson)
FAIRCHILD AIR FORCE BASE, Wash. --
The 92nd Civil Engineer Squadron completed the final of four tests of the maintenance hangar's foam suppression system Oct. 1, ensuring Fairchild's facilities, personnel and equipment are safe and secure in the event of a fire.
Fairchild's engineers, local contractors, emergency responders and maintainers initiated the test to ensure the foam suppression system would activate and could meet the necessary requirements. Col. Brian McDaniel, 92nd Air Refueling Wing commander, initiated the final test by pulling the emergency handle.
The foam is known as Ansul High Expansion Concentrate. When mixed with water, the solution becomes 2 percent foam and 98 percent water. In the event of a fire, the system can be shut off by emergency responders as soon as the emergency is under control.
The foam suppression system is capable of producing 238,000 cubic feet of foam concentrate per minute. In the test, the system ran for approximately two-and-a-half minutes, and produced over six feet of foam, covering the 68,000 square foot floor of hangar number one. If not stopped, the system would run for approximately 12 minutes before becoming empty and result in 20 feet of foam in the hangar.
The Ansul High Expansion Concentrate used in the test is very similar to dish soap, which settles over time. The foam was allowed to settle over the weekend which resulted in puddles and very little foam solution left after the weekend. In order to comply with environmental regulations, the remaining foam solution is collected and transported to an approved off-site disposal facility.
